WT/XT Universal Suspended Conveyor

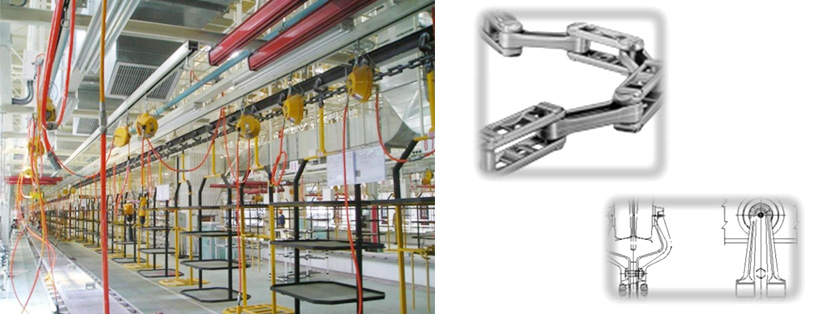

WT/XT universal suspended conveyor aims to operate the conveyed object along the ring track in a continuous or intermittent manner and under the traction of die forging dismountable chain or stamping dismountable chain. A complete set of WT/XT general suspended conveyor system is composed of the traction chain, support slide frame, track, driving unit, tensioning unit, sling and electrical control system. The protective units are collocated for various machineries and electrical equipment to assure safe and stable operation; the linearity is collocated with standard I-bar track and in the ring sealed profile. The product is featured as simple structure, stable operation, low noise and convenient maintenance. It is widely applied in various industries and operation conditions.
The die forging (stamping) dismountable chain is composed of the inner chain, outer chain and hinge pin; the die forging (forgeable iron) slide frame enjoys three models: idled model, loaded model and heavy loaded model and is convenient for assembly and dismantle. According to different chain pitches, three British systems (3’’, 4’’, 6’’) and three metric systems (XT 80, XT 100, XT 160) are collocated.

Main Technical Parameters

Category Track Chain Chain pitch Bearing capacity of single conveyor Permissible tensile force of chain Remark
WT3 I-8 X-348 76.6 100kg 900kgf Die forging dismountable chain
WT4 I-10 X-458 102.4 250kg 1500kgf Die forging dismountable chain
WT6 I-16 X-678 153.2 600kg 2700kgf Die forging dismountable chain
PX80 I-10   80 80 900kgf Die forging dismountable chain
XT100 I-12,I-14   100 500 1500kgf Die forging dismountable chain
XT160 I-14, I16   160 750 2700kgf Die forging dismountable chain
XT100 I-12, I14   100 500 1200kgf Die forging dismountable chain
XT160 I-14, I16   160 750 1500kgf Die forging dismountable chain
