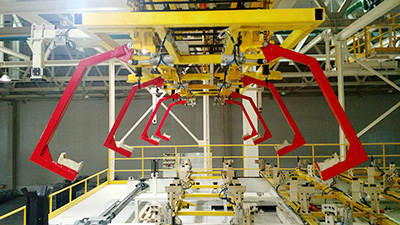

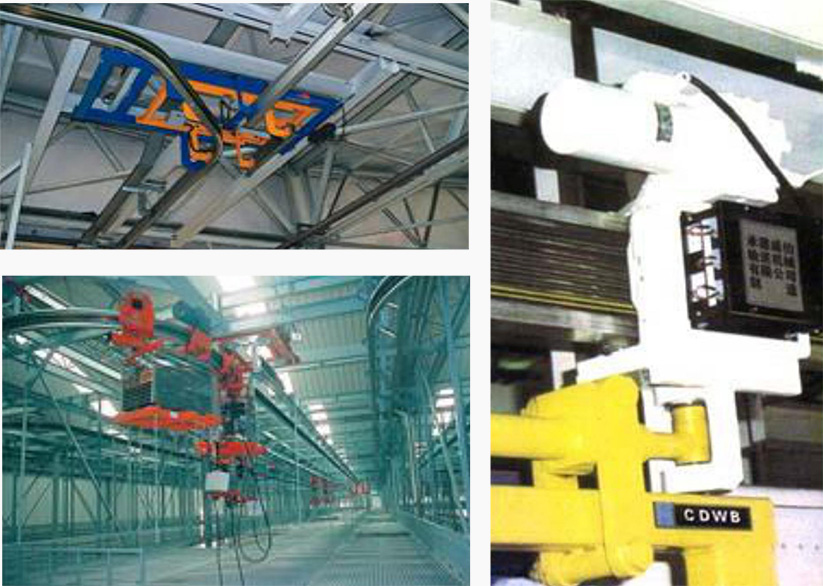

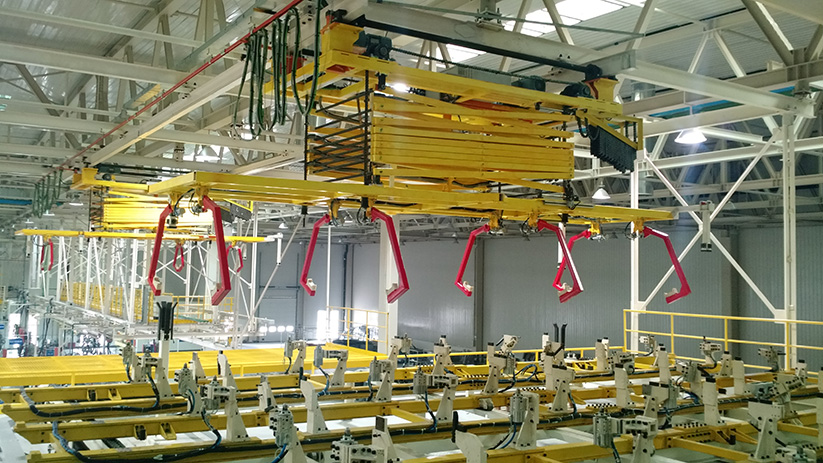

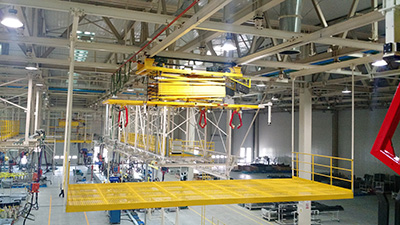

Automatic Trolley/Hoist Conveyor

The automatic trolley/hoist conveyor refers to the latest product of materials transportation equipment and is increasingly popular under special environment with speed and intelligence requirements as the main indicators. Each power trolley adopts power from the power supply track; according to the operation experience in various conditions, the automatic electric hoist enjoys simple maintenance and high productivity; in the synchronous and asynchronous manufacturing and assembly line, the automatic electric hoist has replaced low-speed and low efficiency materials transportation system. The typical trolley speed is 18—45 meters/min; in special conditions, the speed can be increased; the trolley production area is even slower under the regional control of speed to adapt to the production pace. In the automatic station or robot station, the access/exit load is accelerated at the same time to adapt to high production efficiency of automatic process equipment.




Main Technical Parameters

DZ125~500 DZ1000 DZ2000 DZ4000 DZ6000
Loading capacity (kg) Operation speed (m/min) Power (kW) Loading capacity (kg) Operation speed (m/min) Power (kW) Loading capacity (kg) Operation speed (m/min) Power
(kW)
Loading capacity (kg) Operation speed (m/min) Power (kW) Loading capacity (kg) Operation speed (m/min) Power (kW)
Standard goods trolley 500 17 0.3 7 10 00 17 0.3 7 20 00 17 0.55 4000 15 0.4x 2 600 0 15 0.4x2
Track (Aluminum alloy track) distance of hoisting points: 1—1.5 m Aluminum alloy
track and steel track
(Steel track) distance of hoisting points: 1.5—2.5 m
Straight track Standard length: 6m, 3m Standard length: 6m
Bent track R1000,R1500,R2000 R1500,R2000,R2500,R3000
Turnout Structure model includes I model and V model (or turntable model); pneumatic and electrical push rod and hydraulic driving model are collocated; the stroke is 600 mm; track conversion time is 2s, 5s.
Conductive slide wire C model or M model: The installation quantity is determined according to the actual conditions; 5—9 conductive slide wires are collocated in the track belly plate in a parallel manner.
Ring chain hoist 125kg,250kg,500kg 500kgx2 1000kgx2 2000kgx2 3000kgx2
Control model The concentrated & distributed control model, concentrated control model and distributed control model are collocated; the address identifier + linear motor locating system are collocated. It is able to operate the trolley in the station.
